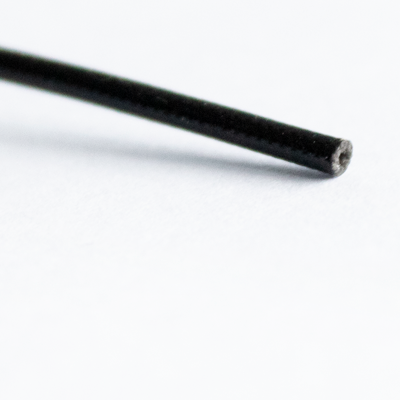

Polycryl PAC 30 - 0.8mm I/D

Polycryl PAC is a polyester braided sleeve with an acrylic impregnation. This is a Class B electrical insulating sleeving available in two voltage grades.

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back

  • Text
  • Number
  • Text & Number

Text Element

Text & Number Element

Number Element

Skip Personalisation | Request a Callback

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

£3.45 £4.14
In stock
SKU
POLYCRYL-PAC-30-0.8-0-Black

Polycryl PAC is a polyester braided sleeve with an acrylic impregnation. This is a Class B electrical insulating sleeving available in two voltage grades.

Size - 0.8mm I/D 1.4mm O/D x 0.3mm Wall

This sleeving has good flexibility alongside being tough and abrasion resistant. The polyester base yarn contributes to good cut-through properties. It is compatible with most insulating varnishes and is capable of short term operation above its thermal classification. Major uses of this product include motor and transformer manufacture.

Specifications include IEC60684 sheet 320 & 421 and UL1441

Features include:

  • Halogen free
  • Good antifray properties
  • Excellent abrasion and cut-through resistance
  • Thin wall, lightweight construction

Operating Temperatures:

  • -70°C to +130°C (20.000 hours) (Electrical Market)
  • -70°C to +180°C (3.000 hours) Peaks at +200°C (Automotive Market)
More Information
Quick Search Code 104030

Size:

  • 0.8mm I/D 1.4mm O/D x 0.3mm Wall



Operating Temperatures:

  • -70°C to +130°C (20.000 hours) (Electrical Market)
  • -70°C to +180°C (3.000 hours) Peaks at +200°C (Automotive Market)
